Customizing scale model windows

Window Construction :

As an alternative to buying plastic windows, or when you can't find the size and shape you need, you can build frames using small styrene or basswood angle and rectangular strips as shown.

STYRENE SHAPES AVAILABLE FROM:
Evergreen Scale Models
https://evergreenscalemodels.com/collections/14-35cm-opaque-white-polystyrene-angle

BASSWOOD SHAPES AVAILABLE FROM:
Northeastern Scale Lumber
https://www.northeasternscalelumber.com/products/structural-shapes.html

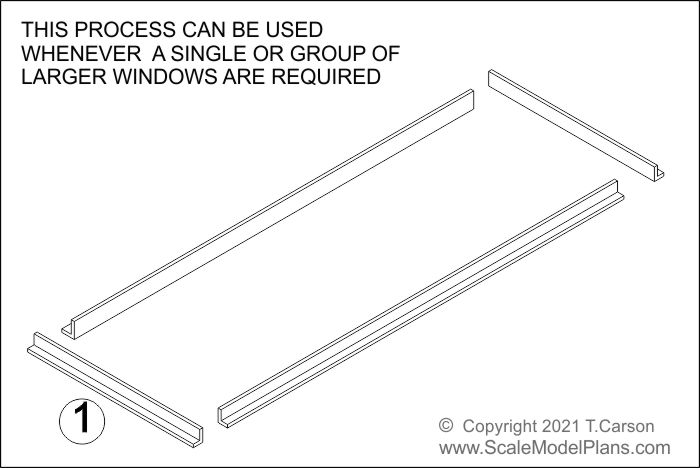

Cut pieces to overall length and width of desired window assembly.


Customizing scale model windows

For this HO scale project I used .188" (4.8 mm) Angle for the outer frame.

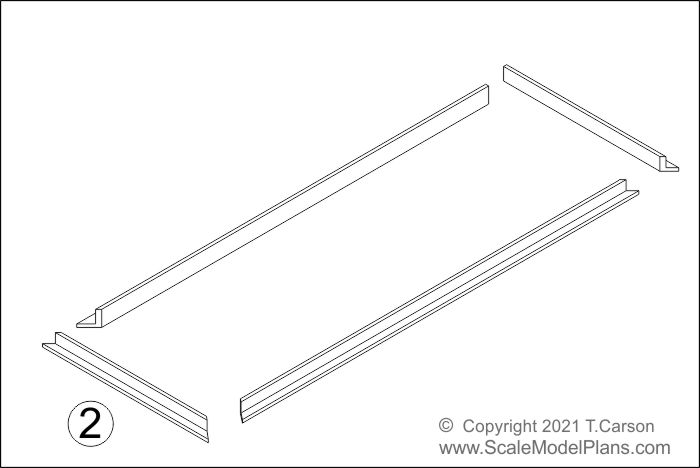

Miter all corners to 45° using a chopper, razor saw, or reinforced razor blade.


Customizing scale model windows

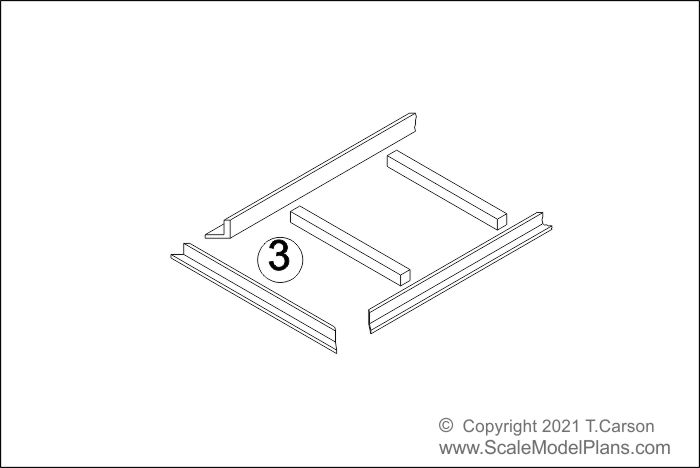

Cut mullions from rectangular material. I used .188" (4.8 mm) x .188" (4.8 mm).



Customizing scale model windows

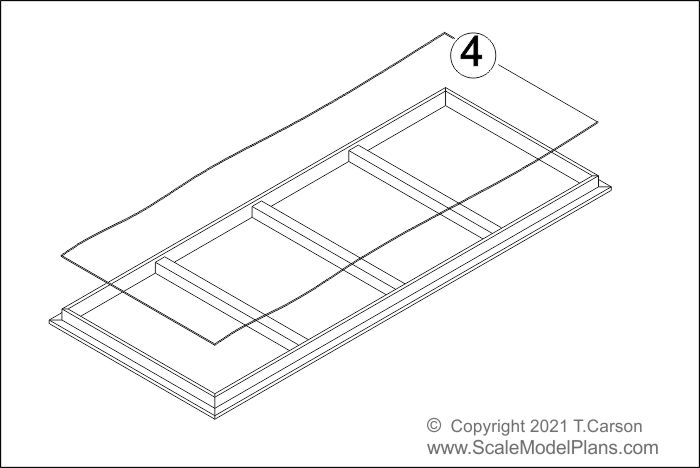

After painting the frame glue acetate to frame from inside of structure. It may be easier to install the window frame first. then glue the acetate in place from the inside of the structure.


Customizing scale model windows

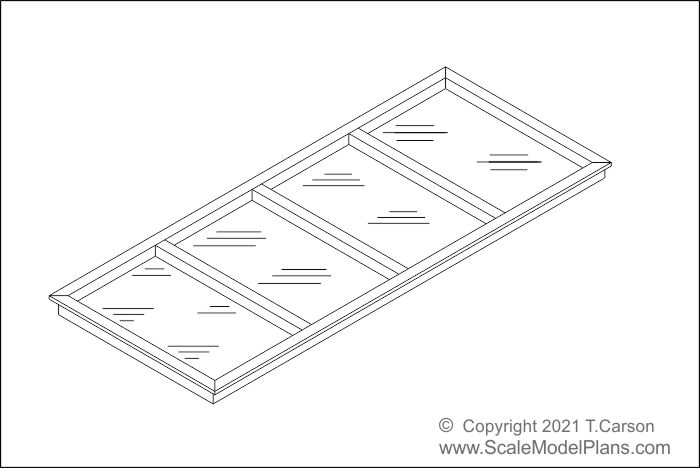

Completed window assembly


scratch built windows

The showroom windows of Plan 2498 - Kingsway Motors iare an example of this procedure.


Northeastern Scale Lumber windos

Customizing doors & windows:

Check our window and door reference charts for an array of pre-made doors & windows.

Sometimes the exact door or window is not commercially available, and rather than significantly depart from the look of the original prototype structure you may wish to fabricate an opening by modifying one or more available styrene pieces. Here are two methods that have often been used on our projects:



Combining HO scale windows

Combining smaller windows:

A simple solution for a larger than available window can be to combine to or more windows together into one unit.

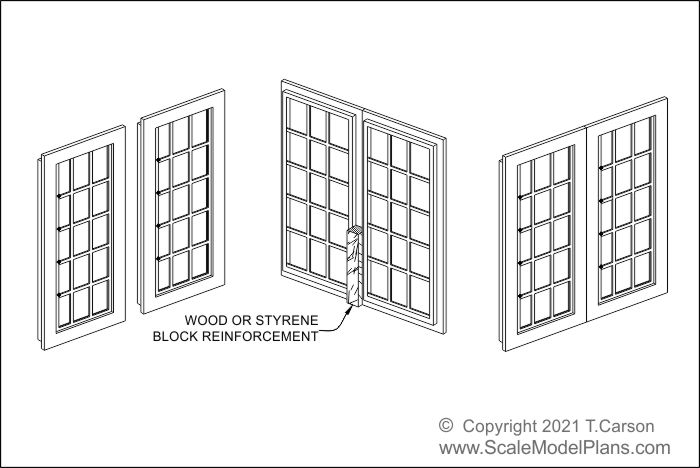

If you need a large picture window or storefront window, check the chart for a window of approximate height, and a width that would multiply to the approximate width of your required result. You may be able to glue two or three narrower windows to gether to get the desired result.

Reinforce the joins with rectanglar material such as basswood or styrene as shown.


modify_scale_windows

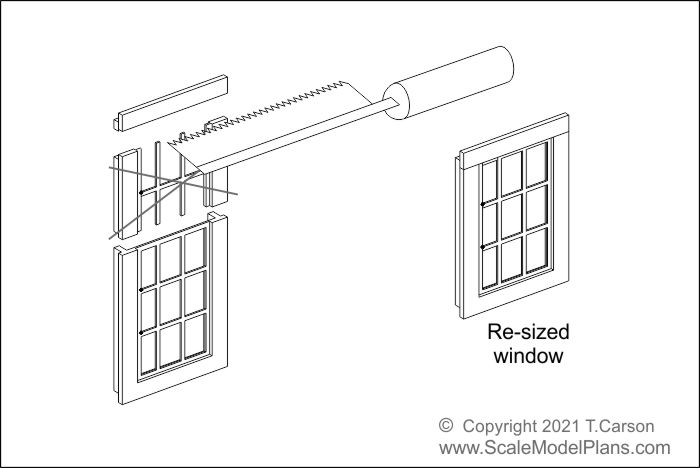

Resizing an existing window:

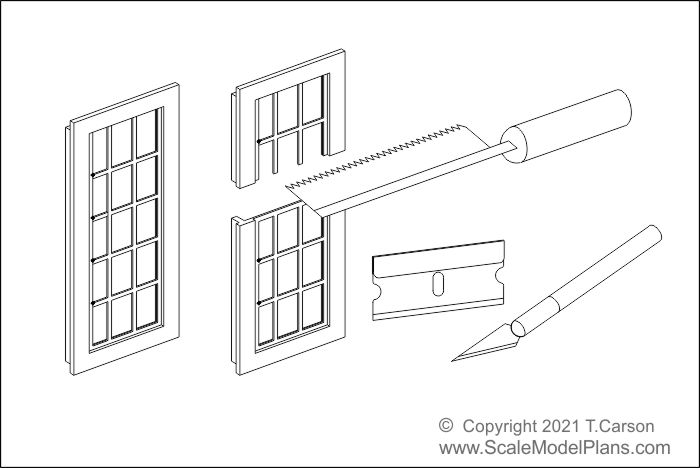

You can modify the height or width of an existing larger window by using a razor saw, razor blade, or hobby knife. Cut, trim, and rejoin pieces of a larger window in order to get the size you need.


Rejoin the Head section to the trimmed frame to create a shorter window.

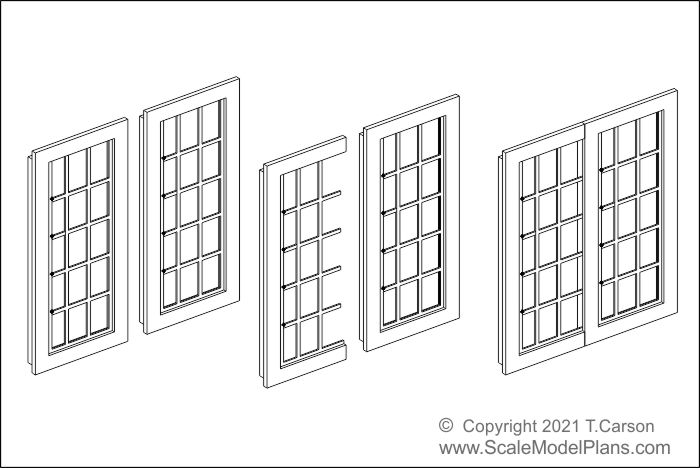

To create a wider window you can remove a side casing from either one of both windows.

Plan 1272 Christ Church The large sanctuary window in Plan 1272, Christ Church in Hope, BC, is an example of combining a variety of windows to make up the desired effect.

Although there are hundreds of various sizes, shapes, and scales of windows available, there are thousands of variations in real life prototype structures. Given these odds, is is very likely that at some point you will not be able to find a commercially available window to fit your model. However, using some of these techniques will allow you to create a facsimile that will be very close, so that you can create a realistic depiction of the prototype structure. Using your creativity can be a rewarding part of model building.
